YUANTAI Light duty outside warehouse dedicated single girder gantry crane

Product Categories

Henan Yuantai Crane Machinery Import&Export Co.,Ltd

Contact Now

Place of Origin : Henan, China (Mainland)

Brand Name : YT

Certification : ISO;CE;SGS

Model Number : MH

Rated Lifting Moment : according to the specifide parameters

Rated Loading Capacity : 20t

Max. Lifting Load : 20t

Max. Lifting Height : 30/32m

Span : 7.5m-31.5m

Application : various

Feature : Gantry Crane

MOQ : 1

Price : Negotiation

Packaging Details : Electric hoist, electricals and other parts are packaged by high quality plywood crates, Main beam p

Delivery Time : within 30 days after prepayment

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

Technical parameter

Items				Lifting part				Items				Traveling part
												3		5		10		16
												Crane	Trolley	Crane	Trolley	Crane	Trolley	Crane		Trolley
capacity		t		3	5	10	16	Work system				A3-A5
Lift speed		m/min		8	8	7	3.5	Traveling speed		m/min		30	20	30	20	30	20	30	20
Lift height		m		9				Motor	Model			ZDY122-4	ZDY12-4	ZDY131S-4	ZDY121-4	YZR132M2-6	ZDY121-4	YZR160M1-6	ZDY121-4
Work system				A3-A5					Power		KW	1.5	0.4	2.2	0.8	4	0.8×2	6.3	0.8×2
Motor	Power		KW	4.5	7.5	13	13		RPM		m/min	1380	1380	1380	1380	900	1380	1000	1380
	RPM		r/min	1400	1400

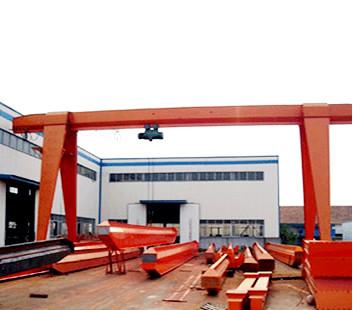

YUANTAI Light duty outside warehouse dedicated single girder gantry crane Images
