Name: YT crane manufacturer lifting equipment frame gantry crane
Brand: Yuantai
Price: 1 USD

Place of Origin : Henan, China (Mainland)

Brand Name : Yuantai

Certification : BV;ISO;CE;SGS certifications

Model Number : L/MH

Rated Lifting Moment : 1000KN

Rated Loading Capacity : 2-20t

Max. Lifting Load : 22.5t

Max. Lifting Height : 30m

Span : 12-35m

Application : Shipyard, Workshop, Plant, Storage, Road construction

Feature : Gantry Crane

MOQ : 1

Price : Negotiation

Packaging Details : Electric parts and electric hoist are packed by strong plywood crate, others packaged in plastic wov

Delivery Time : Within 3-6 weeks after received deposit.

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

Specification of 3-20 ton:

Capacity				T	3	5	10	16	20
Operational method					Pendent line with push button /cabin
Speed	Lifting			m/min	8 ,8/0.8	8,8/0.8	7,7/0.7	3.5	3.5
	Cross travelling				20	20	20	20	20
	Long travelling	Ground			20	20	20	20	20
	Long travelling	Cabin			30,40	30,40	30,40	30,40	30,40
Motor	Lifting			Type /kw	ZD41-4/4.5	ZD141-4/7.5 ZDS10.8/4.5	ZD151-4/13 ZDS11.5/4.5	ZD151-4/13	ZD152-4/18
	Cross travelling				ZDY12-4/0.4	ZDY121-4/0.8	ZDY21-4/0.8×2	ZDY121-4/0.8×2	YZD-4/0.8×4
	Long travelling		Ground		ZDY21-4/0.8×2ZDY21-4/1.5×2	YZR132M1-6/2.2×2YZR132M2-6/3.7×2	YZR160M1-6/6.3×2	YZR160M1-6/6.3×2YZR160M2-6/8.5×2	YZR160M1-6/6.3×2YZR160M2-6/8.5×2
	Long travelling		Cabin		ZDR22-4/1.5×2ZDR24-4/2.2×2	YZR132M2-6/3.7×2YZR160M1-6/5.5×2	YZR160M1-6/6.3×2	YZR160M2-6/8.5×2YZR160L2-6/11×2	YZR160M2-6/8.5×2YZR160L2-6/11×2
Electric hoist				Type	CD1/MD1	CD1/MD1	CD1/MD1	CD1	HC
Lifting height				m	6,9
Working duty					A5
Power supply					as your demand
Span				m	12,16,20,24,30

We can design and manufacture all kinds of crane as your requirements!

Design and manufacture according to GB/T 14406 "General gantry crane".

Mainly made up of bridge, trolley, crane traveling mechanism and electric system.

All the procedure are finished in the operating room.

Applies to the open warehouse or rail along for general handling and lifting work.

Also can equipped with many lifting device for special work.

China YT crane manufacturer lifting equipment frame gantry crane factory

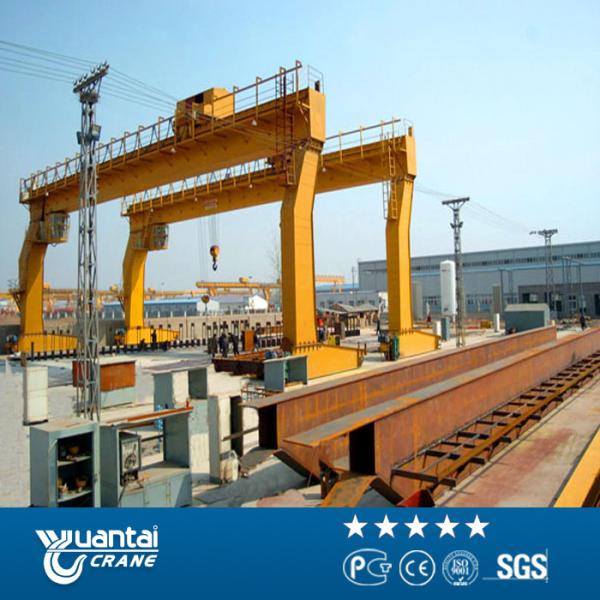

YT crane manufacturer lifting equipment frame gantry crane Images
