Specifications
Electric hoist ld bridge crane
Double lifting speed
CE,GOST,ISO SGS Standard
Siemens electricals
Monorail rail hoist
1. Crane girders:
The crane girders are of welded girder construction. This result in lower dead weight with a high degree of vertical and horizontal rigidity and smaller wheel loads being transmitted to the crane runway. One-body shaped, No welding for main beam box!
2. End carriage:
Crane travelling system, Motor-Reducer-Wheel driven system! motor used soft start motor which result in very stable starting!

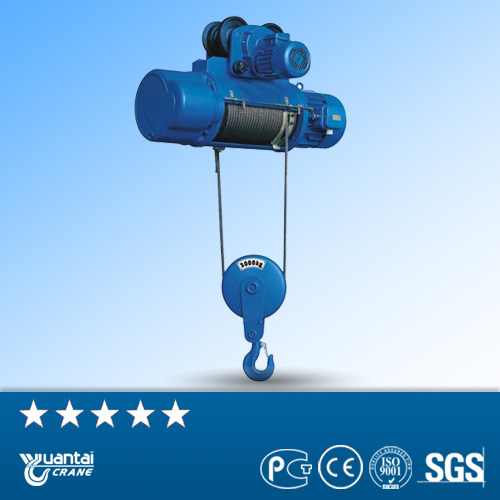

3. Lifting mechanism:
Monorail electric hoist. There are two kinds could be optional, CD model with single lifting speed, MD model with double lifting speed!
4. Electrical equipment:
Electric systems are Siemens brand or Schneider brand!
5. Motor:
motor brand for hoist and traveling are Nanjing special brand, The top brand in China
6. Gear box:
Tailong or Taixing brand, Top brand on heavy duty gearbox
7. Overload protection device:
composed of Sensor and Displayer, Sensor installed on the fixed top of wire rope, the displayer installed near the control panel!
Safety feature:
Weight overload protection device,
Top quality long time bearing polyurethane materials buffer,
Crane traveling limit switch,
Voltage lower protection function,
Emergency stop system,
current overload protection system and so on!
Hooks with latch
Control method:
Pendent line with press button or Remote control or both!
Design and construction rules:
All the standard required on the crane is according to Chinese standard!
We have past CE, ISO, SGS, GOST and so on
Painting:
Primer and finishing paint
Color: according to your demand.
Average thickness: about 100 microns
The parameter of single and double hook crane are as following table:
| 1 | Rated load capacity (T) | 0.5, 1,2, 3, 5 ton, 10, 16, 20 ton |
| 2 | Rated span (m) | 7.5-31.5 |
| 3 | lifting height (m) | 6, 9, 12, 18, 24, 30 |
| 4 | Power supply | 380V 50hz 3phs (or according to your demand) |
| 5 | Main hook lifting speed (m/min) | 3.5/0.35 m/min , 7/0.7mimin, 8/0.8 m/min |
| 6 | Trolley travelling speed (m/min) | 20 or 30m/min |
| 7 | Crane travelling speed (m/min) | 20 or 30 m/min |
| 8 | Working duty | A3 |
Users can choose the other configurations as following:
1. The speed system can use the frequency convertor to adjust the speed according to your demand.
2. Installing the wireless remote device to fulfill the long distance control.
3. If in the outdoors, pls have a special note to proof-wind and proof-rain.
4. The other feasible configurations for your choose.
|
|
