Warehouse Workshop Plant 10t Single Girder Overhead Crane, Crane Manufacturing Expert Prod

Name: Warehouse Workshop Plant 10t Single Girder Overhead Crane Crane Manufacturing Expert Prod
Brand: Yuantai
Price: 1 USD

China Warehouse Workshop Plant 10t Single Girder Overhead Crane, Crane Manufacturing Expert Prod factory

Place of Origin : Henan, China (Mainland)

Brand Name : Yuantai

Certification : ISO;CE;SGS

Model Number : LD

Rated Lifting Moment : according to the specifide parameters

Rated Loading Capacity : 32t

Max. Lifting Load : 32t

Max. Lifting Height : 30/32m

Span : 7.5m-31.5m

Application : various

Feature : Bridge Crane

MOQ : 1

Price : Negotiation

Packaging Details : Electricals and other parts are packed by high quality plywood crates, Main beam packaged by plastic

Delivery Time : 15days after we got deposit

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

Main girder

The main girder of electric bridge crane includes girder box, platform, pantograph and trolley rail. The Main girder will be strictly fabricated and detected in our workshop according the design and national standard.

The toughness and strength are perfect combination. It applies shot blasting and high quality painting. Wellchosen choose steel plate, advanced welding technology and equipment.

Hoist

electri single girder mini can adopts CD or MD type hoist. CD type has single speed while MD type has double speed to satisfy accurate operation. Henan Yuntian Crane Products

End Beam

The end beam of bridge crane works as long traveling mechanism, and it combines with beam, Wheel, Motor, Reducer, Brake and Other Parts.

The steel plate adopts shot blasting and high quality painting. High quality raw material.

The end beam are connections with bearing beams.

Electric Parts:

We choose high quality electric parts with rain cover. The power supply mode are cord reel.

We could offer the top brand of Electric parts such as: Chint, Siemens,Schneider and so on.

Warehouse Workshop Plant 10t Single Girder Overhead Crane, Crane Manufacturing Expert Prod

Technical Parameters of bridge crane:

Capacity		T	1,2,3,5,10	16,20
Span		m	7.5-22.5
Lifting height		m	6,9,12,18,24,30	12,18,24,30
Operation method			Pendent line with push button/ remote control
Speed	Lifting	m/min	8,8/0.8,7/07	3.5,3.5/0.35
	Cross travel	m/min	20,30	20,30
	Long travel	m/min	20,30,45,60,75
Electric hoist		type	CD/MD	CD/MD/HC
Working duty			A3	A3
Power supply		AC	380V/50HZ/3P	380V/50HZ/3P

Different types single girder overhead crane

Warehouse Workshop Plant 10t Single Girder Overhead Crane, Crane Manufacturing Expert Prod

LD model single girder overhead crane

Loading capacity: 0.5 ~ 20t
Lifting height: Customized
Span: 7.5 ~ 31.5m
Power supply: 220 ~ 440V,50/60Hz,3Phase
Working class: A3
Working temperature: -20°c ~ 40°c

Send inquiry

LDP model single girder overhead crane

Loading capacity:1 ~ 16t
Lifting height: Customized
Span: 7.5 ~ 22.5m
Power supply: 220 ~ 440V,50/60Hz,3Phase
Working class: A3
Working temperature: -20°c ~ 40°c

Send inquiry

LX model single girder overhead crane

Loading capacity:0.5 ~ 10t
Lifting height: Customized
Span:7.5 ~ 16m
Power supply: 220 ~ 440V,50/60Hz,3Phase
Working class: A3
Working temperature: -25°c ~ 40°c

Send inquiry

LXB model single girder overhead crane

Loading capacity:0.5 ~ 5t
Lifting height: Customized
Span: 3 ~ 16m
Power supply: 220 ~ 440V,50/60Hz,3Phase
Working class:A3
Working temperature: -25°c ~ 40°c

Send inquiry

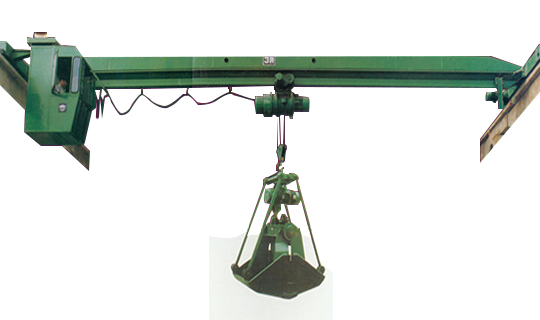

LDZ model single girder grab overhead crane

Loading capacity:3 ~ 5t
Lifting height: Customized
Span:7.5 ~ 22.5m
Power supply: 220 ~ 440V,50/60Hz,3Phase
Working class:A5
Working temperature: -20°c ~ 40°c
