Yuantai Design drawing supply MG Model Heavy Duty Double Girder Gantry Crane

Product Categories
Henan Yuantai Crane Machinery Import&Export Co.,Ltd
Contact Now

Yuantai Design drawing supply MG Model Heavy Duty Double Girder Gantry Crane

Place of Origin : Henan, China (Mainland)

Brand Name : Yuantai

Certification : ISO;CE;SGS

Model Number : MG

Rated Lifting Moment : according to the specifide parameters

Rated Loading Capacity : 20-550t

Max. Lifting Load : 550t

Max. Lifting Height : 30/32m

Span : 10.5~31.5m

Application : various

Feature : Gantry Crane

MOQ : 1

Price : Negotiation

Packaging Details : Electric parts and electric hoist are packed by strong plywood crate, others packaged in plastic wov

Delivery Time : 15-30 Days after receiving your deposit

Payment Terms : TT/LC/Others

Supply Ability : 10000 sets per year

Contact Now

Optional Features :
  • Variable speed through VVF Drive
  • Soft starter
  • Slipring motors
  • Wireless Radio Remote control
  • Shrouded DSL system for power feeding
  • Flameproof
  • Cabin Operated

Tech parameter of Double Girder Gantry Crane 20 Ton China

Lifting Capacity (t)

10

16

20/10

30/10

36/16

50/10

Span (m)

18-35

Lifting Height (m)

10-13

Duty Class

A5-A8

Speed
(m/min)

Lifting

8.5

7.9

7.2/10.4

7.5/10.4

7.8/10.5

6/10.4

Trolley

43.8

44.5

44.5

41.9

41.9

38.13

Crane

40

38

38

40

40

38

Motor

Lifting

YZR180L-6/17

YZR225M-8/26

YZR225M-8/26
YZR200L-6/26

YZR280S-10/42
YZR200L-6/26

YZR280M-10/55
YZR225M-6/34

YZR280M-10/55
YZR200L-6/26

Trolley

YZR132M1-
6/2.5*2

YZR132M2-
6/4*2

YZR132M2-
6/4*2

YZR132M1-
6/4*2

YZR132M1-
6/6.3*2

YZR132M1-
6/6.3*2

Crane

YZR160L-6/13*2

YZR160L-6/13*2
YZR160M1-
6/6.3*4

YZR160L-6/13*2
YZR160M2-
6/8.5*4

YZR160M2-
6/8.5*4

YZR160L-6/13*4
YZR160M2-
6/8.5*4

YZR160L-6/13*4

Weight
(t)

Trolley

9

9.5

12

16

18

24

Total

63.2-100

78-106
China Yuantai Design drawing supply MG Model Heavy Duty Double Girder Gantry Crane factory

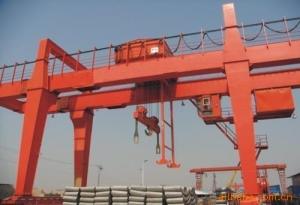

Yuantai Design drawing supply MG Model Heavy Duty Double Girder Gantry Crane Images
